— 01
10.1-inch screen
IPS 1920×1200 · 700 cd/m²
10-point touch G+G Corning Gorilla Glass 3 with 7H hardness. Sunlight-readable at 700 cd/m² brightness. Medical-glove and wet-hand touch options.
10.1″ display · 5G · WiFi 6

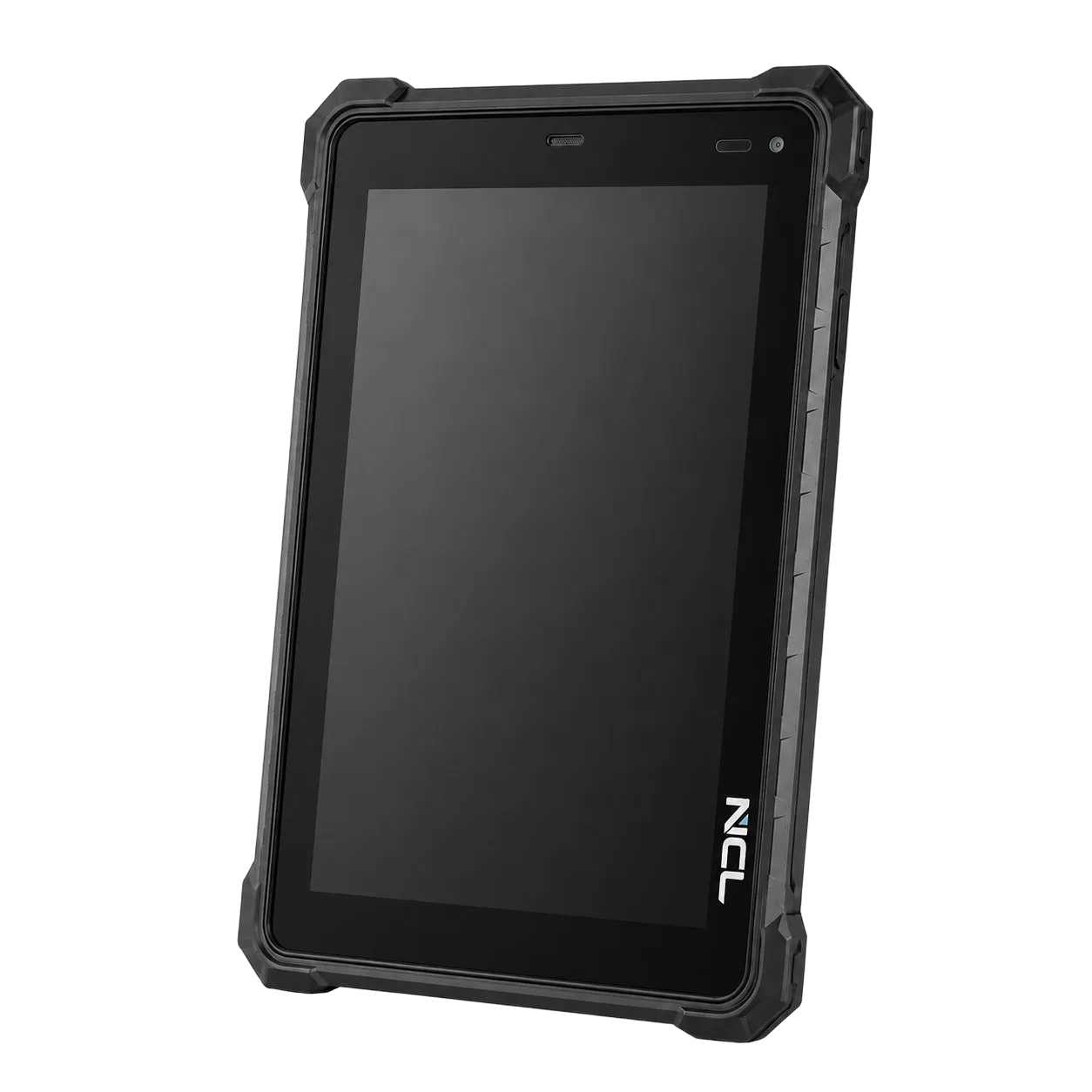

NTC101
5G flagship rugged tablet.
A 10.1-inch 5G platform built around MediaTek Dimensity 900 and a fully modular sensor stack — 1D/2D barcode, UHF/HF/LF RFID, industrial fingerprint, RTK positioning, ID card. Optional explosion-proof certification for petrochemical, mining, and emergency operations.
Drop
1.22 m
Ingress
IP68
Wireless
5G NSA/SA · WiFi 6
Options
Ex / RTK / fingerprint
Product highlights.
— 4 features
— 02
5G flagship platform
MTK6877 · Dimensity 900
Octa-core 2.4 GHz with WiFi 6 and Bluetooth 5.2. 5G NSA/SA across 17 SA bands and 10 NSA bands. Multi-system GNSS (GPS, BeiDou, Galileo, GLONASS) for high-precision positioning.
— 03
Robust design
IP68 · 1.22 m drop · −20 ~ +60 °C
Compliant with GJB and MIL-STD-810H. Optional explosion-proof variants certified to EX Class II petrochemical, KA Class I mining, and MA Class I coal mine safety standards.
— 04
Customised services
Multiple modules available
Module-level customisation: 1D/2D barcode (standard or high-end N670 with cross laser), UHF/HF/LF RFID, industrial fingerprint capture, RTK high-precision positioning, ID card recognition.
— Coverage
Three years. One drop covered.
— Standard on every NCL platform.
- Warranty
- 3-year warranty
- Physical damage
- 1 repair included · screen or chassis
Full specifications.
— NTC101
Product form
- Configure
- 8 + 128 GB (optional 8 + 256 GB)
- Size / weight
- Bare 276.0 × 180.5 × 22.5 mm / 1049 g · Packaging 371 × 213 × 61 mm / 1632 g
- Screen size
- 10.1 inch, 16:10
- Wall hole pitch / screw
- 154 × 71.5 mm / M3 × 4.5 mm
- Color
- Black; customisable
- Resolution
- IPS 1920 × 1200
- Screen brightness
- 700 cd/m²
- Touch screen
- 10-point touch G+G Corning Gorilla Glass 3, hardness 7H
- Battery
- 10000 mAh, 3.8 V high-voltage lithium, non-removable; life ≥ 10 h (1080p HD, 50% brightness, 50% sound); ≥ 6 h (100% brightness, 100% sound). Supports custom large battery 20000 mAh / 3.8 V.
Hardware
- CPU
- MediaTek MTK6877 (Dimensity 900) · 8-core · 2.4 GHz
- RAM / ROM
- 8 + 128 GB (optional 8 + 256 GB)
- Speaker / mic
- Speaker 1 W / 8 Ω × 2 · MIC × 1 · Receiver × 1
- Sensors
- Gravity · Compass · Gyro · Light · Distance
Camera
- Front
- 8 MP fixed focus
- Rear
- 16 MP autofocus · flash
Wireless
- WiFi
- 802.11 a/b/g/n/ac/ax · Dual-band 2.4 GHz + 5.8 GHz · WiFi 6
- Bluetooth
- BT 5.2 class 1 · 10 m range
- 2G / 3G / 4G / 5G
- 5G SA N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N38/N40/N41/N66/N77/N78/N79 (17 bands) · 5G NSA N1/N2/N3/N7/N25/N41/N66/N77/N78/N79 (10 bands) · 4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B25/B26/B28/B66 · 4G LTE-TDD B34/B38/B39/B40/B41 (optional) · WCDMA B1/B2/B5/B8 · GSM B2/B3/B5/B8
- Positioning
- GPS · BeiDou · Galileo · GLONASS · optional single-system BeiDou
- NFC
- 13.56 MHz · 14443A/B · 15693
Ports
- Type-C
- × 1 · USB 2.0 OTG support
- Type-A
- × 1 · USB 2.0
- Earphone jack
- × 1 · 3.5 mm
- TF card
- × 1 · up to 1 TB
- SIM
- × 1 · standard Micro SIM
- DC jack
- × 1 · 5.3 V / 3 A (3.5 mm OD / 1.35 mm ID)
- RJ45
- × 1
- POGO Pin
- × 1 · 12-Pin USB + Charging
- RS232
- × 1 · DB9 serial port
Reliability
- Drop height
- 1.22 m (GJB 150.18A-2009, GJB 150.1A-2009, MIL-STD-810H)
- Working temperature
- −20 ~ +60 °C (Custom −30 ~ +60 °C or −40 ~ +60 °C)
- Storage temperature
- −30 ~ +70 °C
- Humidity
- 95% non-condensing
- Certificates
- IP68 · 3C · CE · MIL-STD-810H · CCC · ISO · RoHS · salt-spray three-proof
- Explosion-proof (optional)
- EX Class II Petrochemical · KA Class I Mining · MA Class I Coal Mine
System & modules
- OS
- Android 15
- Buttons
- Power × 1 · Volume × 2 · Custom × 2 (P key, F key)
- 1D / 2D scanner (custom)
- Standard N1 0.3 MP / red light · High-end N670 1.0 MP / cross laser
- Customisation modules
- ID card · UHF / HF / LF RFID · Industrial fingerprint · RTK high-precision positioning
Where it ships.
— Use cases
Exploration & surveying
Oilfield extraction
Smart manufacturing
Medical cold chain
OBD inspection
Emergency rescue
Specified, mounted, ready to deploy.
— Accessories
Optional
Two-point harness
Optional
Two-point carry handle
Optional
Vehicle mount
Optional
Crossbody bag
Optional
Four-point harness
Optional
Charging dock
